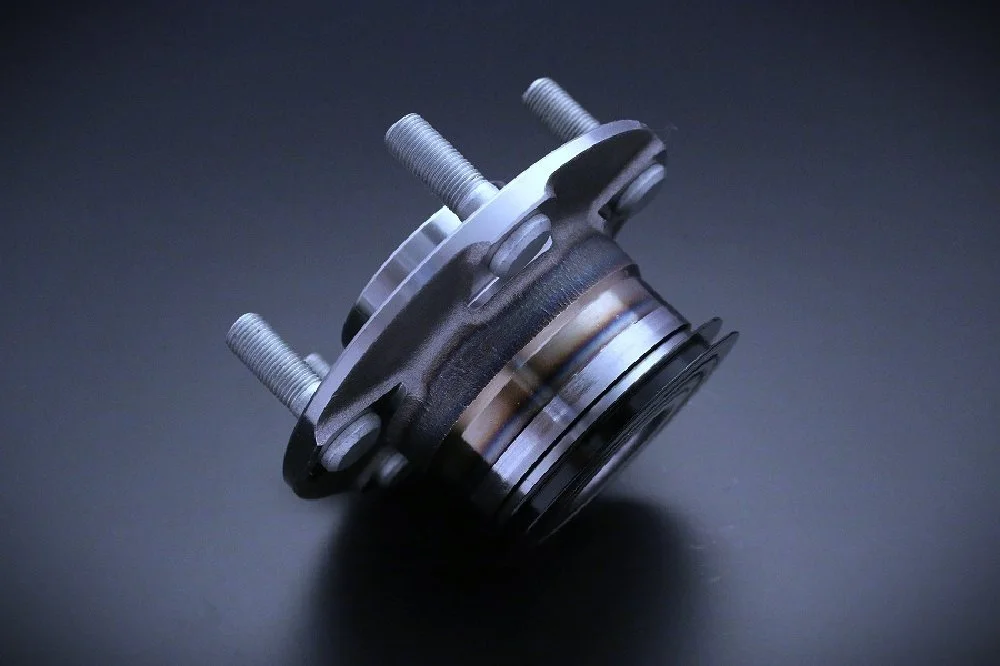

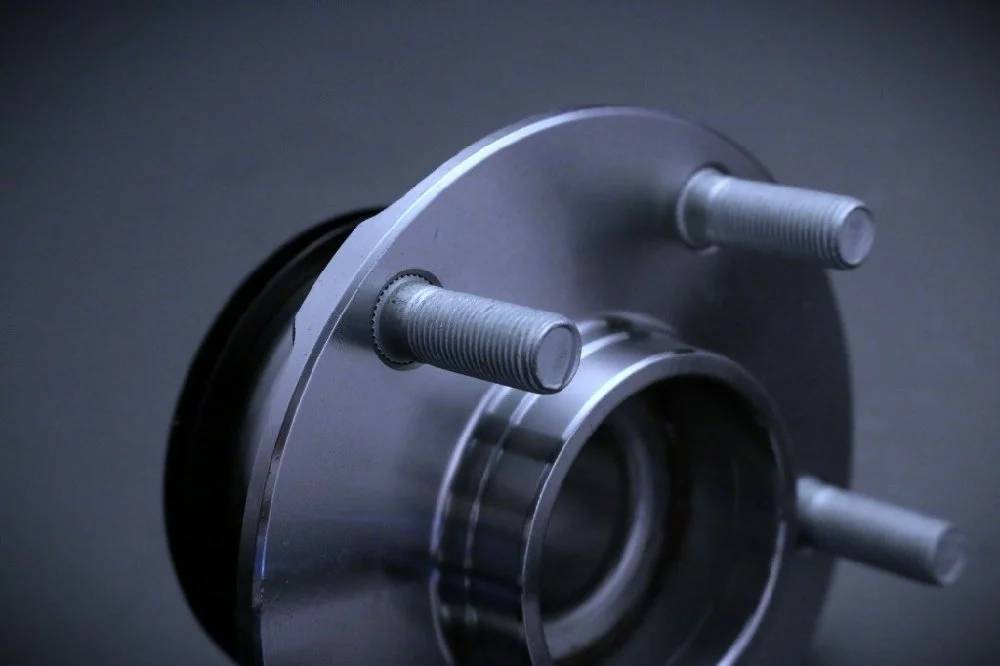

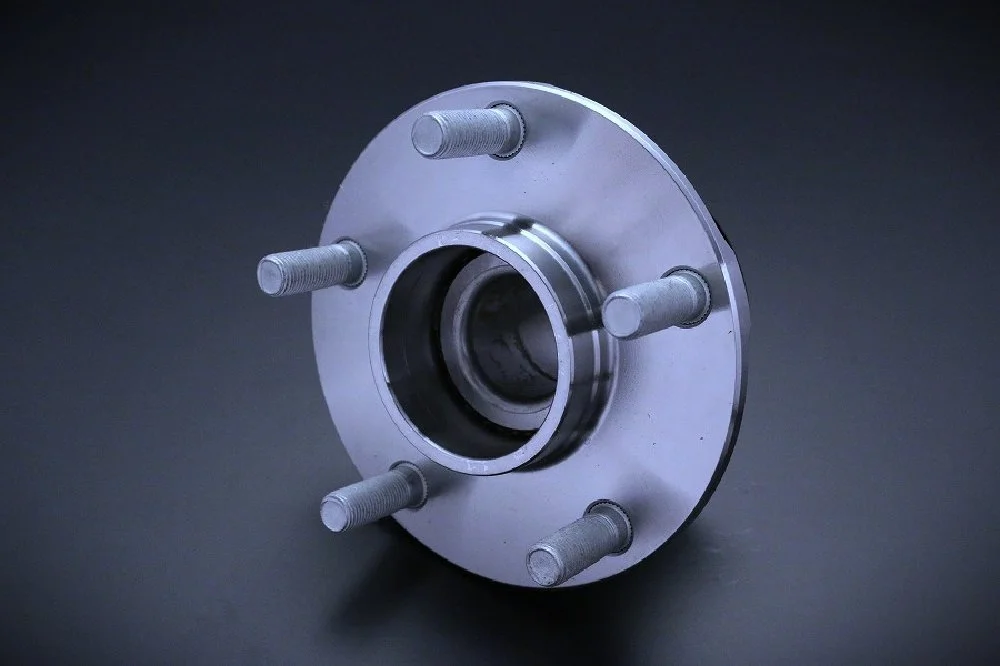

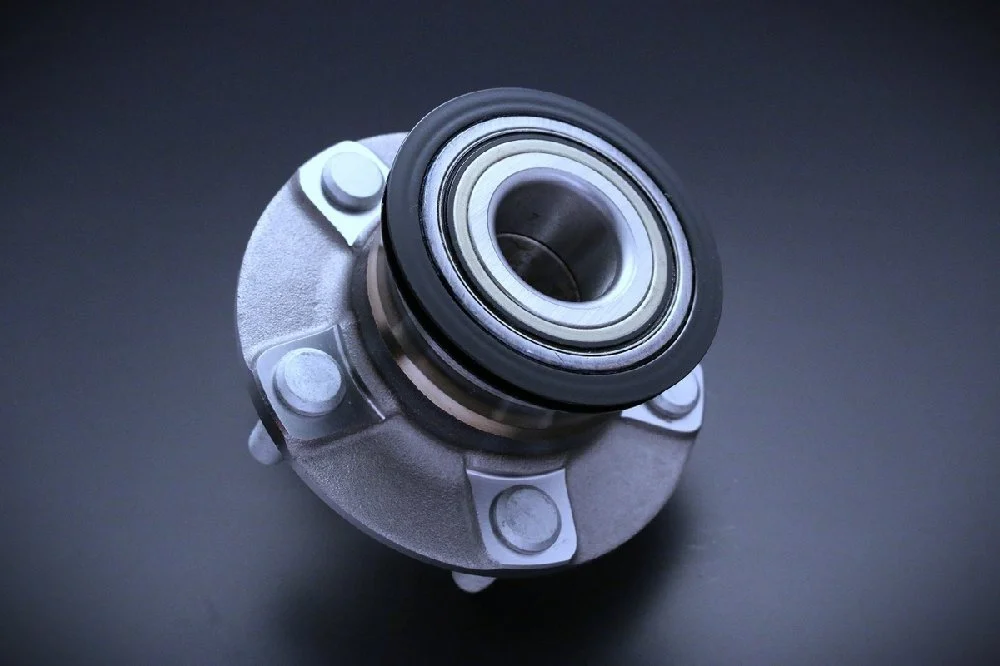

Part# DMHBSRF1SET
Specifications
PCD 114.3-5H
Hub bolt effective thread 26.0 mm
Hub bolt thread pitch M12 x 1.25 mm
Hub bolt serration diameter 14.3 mm
Compatible Models
Compatible S14/S15/C34/C35/WGC34
Not compatible Vehicles with ABS / 4WD not compatible
Notes:
*Hub nut caps are not included. Genuine part number [40234-65F00]
*This is a competition-only part. When installed, noise and body vibration may be greater than with genuine parts.
*Although there is no ABS sensor, it can be installed on ABS vehicles. However, the ABS warning light will illuminate.
