Part# DMSSS05AT2
Compatible models
Model ZN6/ZC6 2012-2021
Specifications/Front
Inverted/Upright Upright
Free length 150mm
Spring rate 5 kgf/mm
Spring type Direct winding
Inner diameter 62Φ

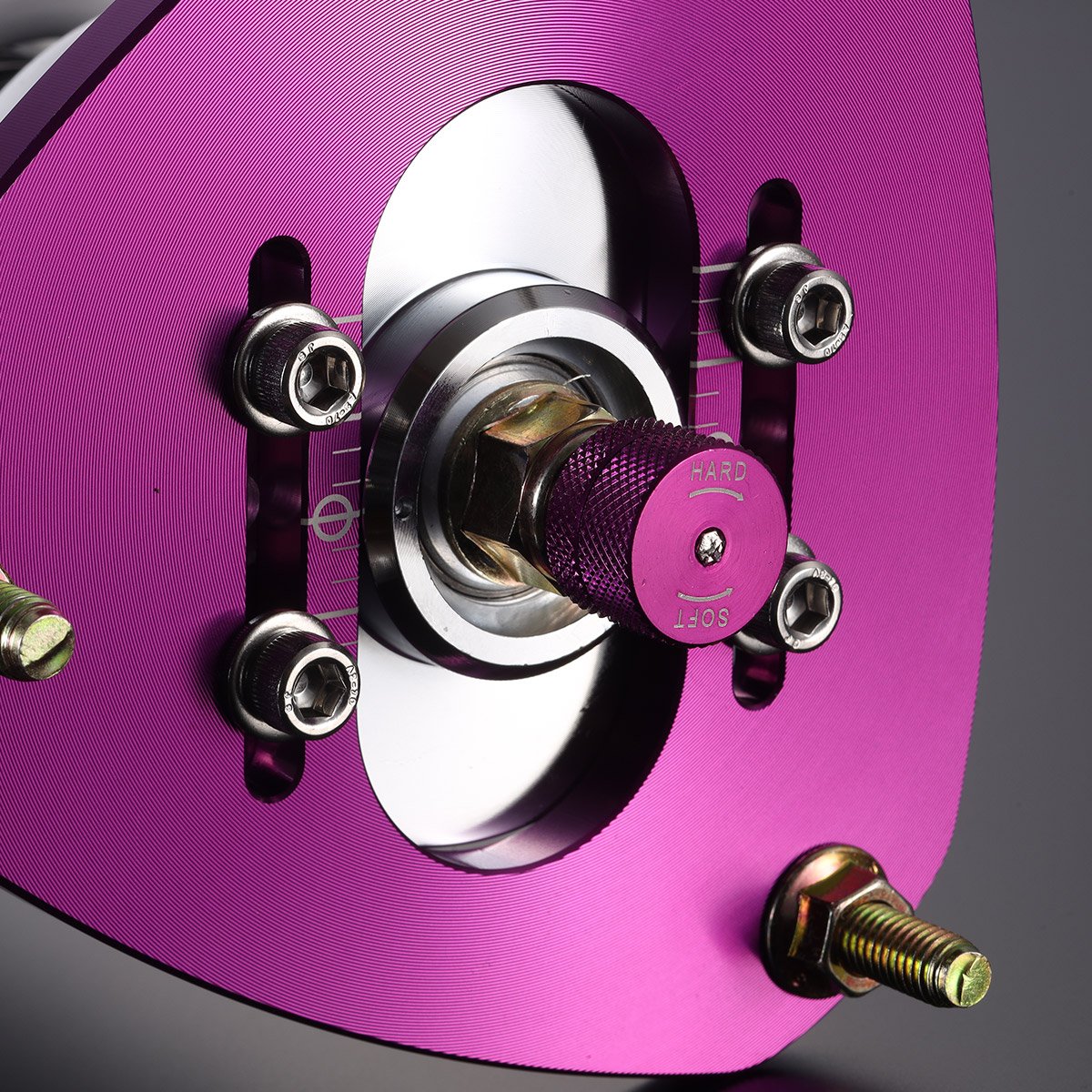

Upper mount Pillowball
Total length adjustment method Full tap type
Damping force adjustment method Dial type
Damping adjustment 30 levels
Specifications/Rear
Inverted/Upright Upright
Free length 180mm
Spring rate 6 kgf/mm
Spring type Taper
Inner diameter 62Φ

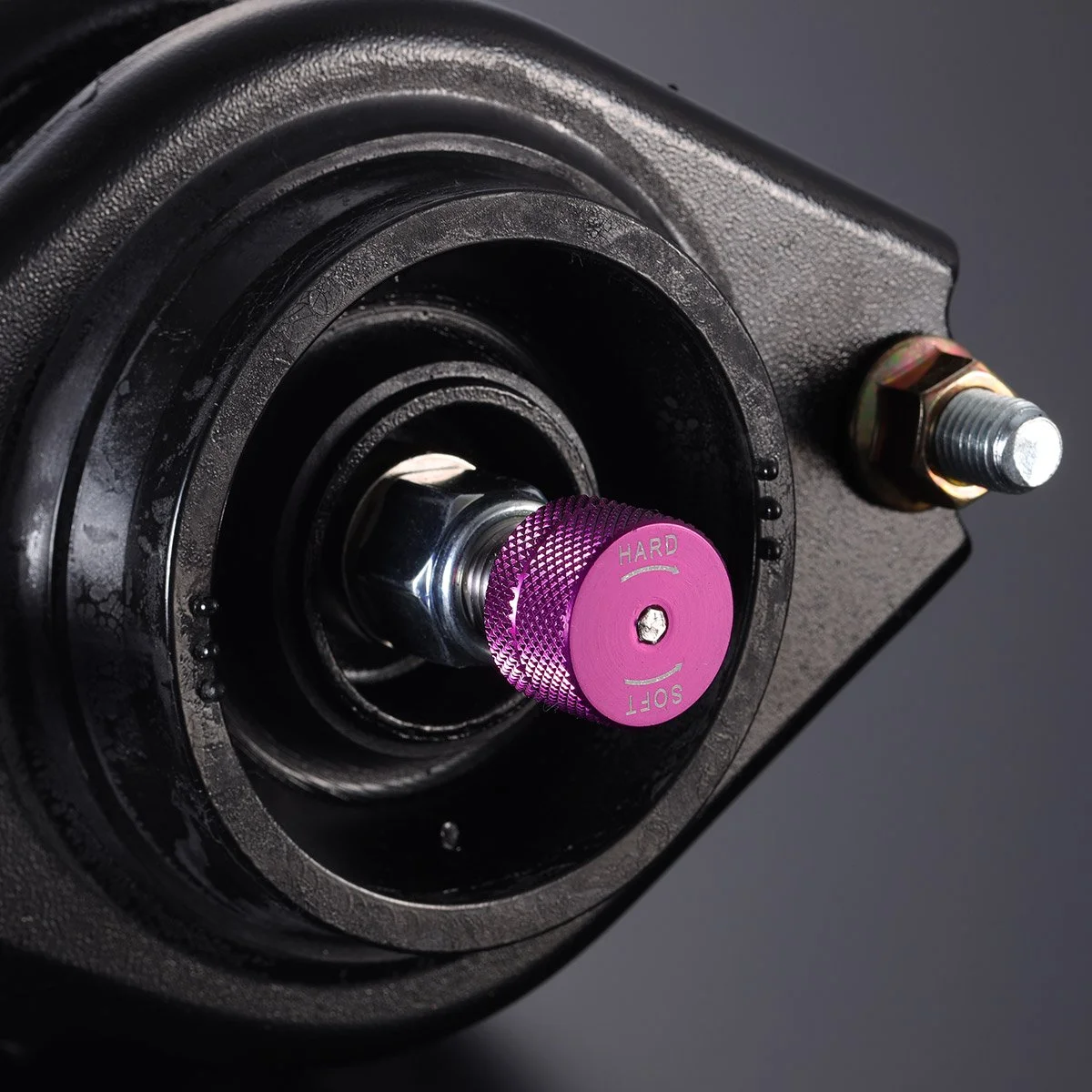

Upper mount Bushing
Total length adjustment method Full tap type
Damping force adjustment method Dial type
Damping adjustment 30 levels

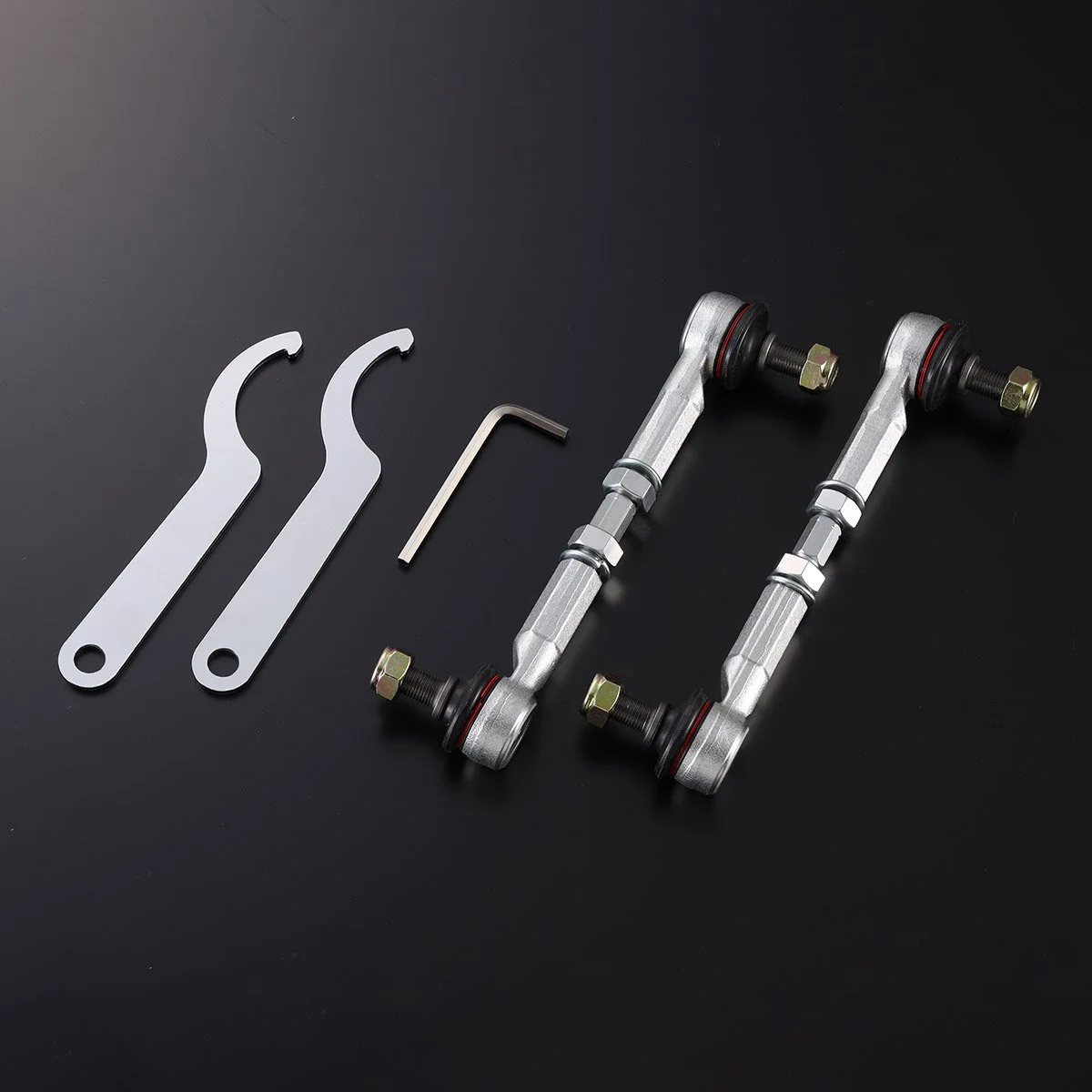

Front adjustable stabilizer link
Adjustment width 200-255 mm
Ball joint M12×1.25
